This article describes solutions for preserving semi-transparency when saving a ggplot2-based graphs into a high quality postscript (.eps) file format.
Contents:
Create a ggplot with semi-transparent color
To illustrate this, we start by creating ggplot2-based survival curves using the function ggsurvplot() in the survminer package. The ggsurvplot() function creates survival curves with the 95% confidence bands in a semi-transparent color.
First install (if needed) survminer as follow:
install.packages("survminer")Then type, this:
# Fit survival curves
require("survival")
fit<- survfit(Surv(time, status) ~ sex, data = lung)
# Visualize
library("survminer")
p <- ggsurvplot(fit, data = lung,
surv.median.line = "hv", # Add medians survival
pval = TRUE, # Add p-value and tervals
conf.int = TRUE, # Add the 95% confidence band
risk.table = TRUE, # Add risk table
tables.height = 0.2,
tables.theme = theme_cleantable(),
palette = "jco",
ggtheme = theme_bw()
)
print(p)
In the plot above, the confidence band is semi-transparent. It can be saved to a PDF file without loosing the semi-transparent color.

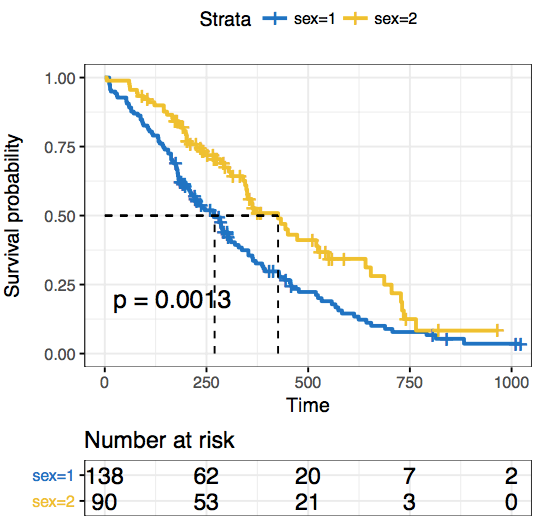

If you try to export the picture as vector file (EPS or SVG, …), the 95% confidence interval will disappear and the saved plot looks as follow:
The problem is that EPS in R does not support transparency.
In the following sections, we’ll describe convenient solutions to save high-quality ggplots by preserving semi-transparency.
Save ggplots with semi-transparent colors
Use cairo-based postscript graphics devices
You can use the ggsave() function in [ggplot2] as follow:
ggsave(filename = "survival-curves.eps",
plot = print(p),
device = cairo_eps)Or use this:
cairo_ps(filename = "survival-curves.eps",
width = 7, height = 7, pointsize = 12,
fallback_resolution = 300)
print(p)
dev.off()Note that, the argument fallback_resolution is used to control the resolution in dpi at which semi-transparent areas are rasterized (the rest stays as vector format).
Export to powerpoint
You can export the plot to Powerpoint using the ReporteRs package. ReporteRs will give you a fully editable vector format with full support for transparency as well.
We previously described how to Create and format PowerPoint documents from R software using the ReporteRs package. We also described how to export an editable ggplot from R software to powerpoint.
Briefly, to export our survival curves from R to powerpoint, the script looks like this
library('ReporteRs')
# Create a new powerpoint document
doc <- pptx()
# Add a new slide into the ppt document
doc <- addSlide(doc, slide.layout = "Two Content" )
# Add a slide title
doc <- addTitle(doc, "Survival Curves: Editable Vector Graphics" )
# Print the survival curves in the powerpoint
doc <- addPlot(doc, function() print(p, newpage = FALSE),
vector.graphic = TRUE # Make it editable
)
# write the document to a file

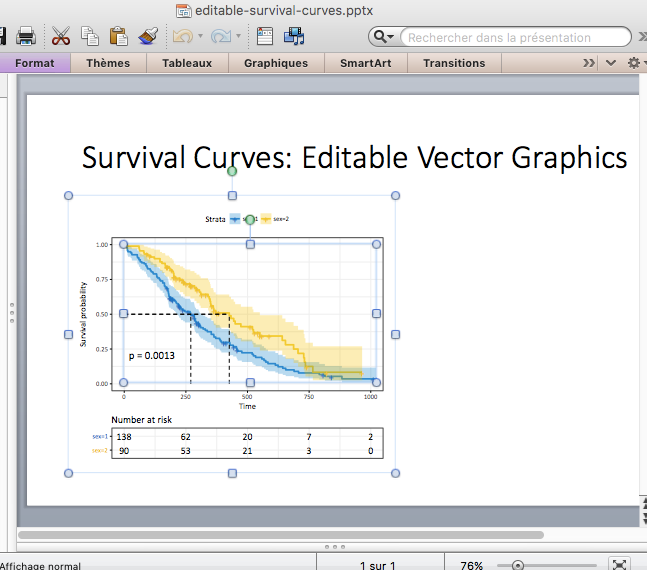

writeDoc(doc, file = "editable-survival-curves.pptx")The output looks like this:
Edit the plot in powerpoint. See the video below: Editing ggplots Exported with ReporteRs into PWPT
