1 Required R packages

The required packages for this chapter are:

• cluster for computing PAM and CLARA
• factoextra which will be used to visualize clusters
• dendextend for comparing two dendrograms

1. Install factoextra package as follow:

if(!require(devtools)) install.packages("devtools")
devtools::install_github("kassambara/factoextra")

2. Install cluster and dendextend packages as follow:

install.packages("cluster")
install.packages("dendextend")

3. Load the packages :

library(cluster)
library(dendextend)
library(factoextra)

2 Algorithm

Hierarchical clustering can be divided into two main types: agglomerative and divisive.

1. Agglomerative clustering: It’s also known as AGNES (Agglomerative Nesting). It works in a bottom-up manner. That is, each object is initially considered as a single-element cluster (leaf). At each step of the algorithm, the two clusters that are the most similar are combined into a new bigger cluster (nodes). This procedure is iterated until all points are member of just one single big cluster (root) (see figure below). The result is a tree which can be plotted as a dendrogram.

2. Divisive hierarchical clustering: It’s also known as DIANA (Divise Analysis) and it works in a top-down manner. The algorithm is an inverse order of AGNES. It begins with the root, in which all objects are included in a single cluster. At each step of iteration, the most heterogeneous cluster is divided into two. The process is iterated until all objects are in their own cluster (see figure below).

Note that agglomerative clustering is good at identifying small clusters. Divisive hierarchical clustering is good at identifying large clusters.

The merging or the division of clusters is performed according some (dis)similarity measure. In R softwrare, the Euclidean distance is used by default to measure the dissimilarity between each pair of observations.

As we already know, it’s easy to compute dissimilarity measure between two pairs of observations. It’s mentioned above that two clusters that are most similar are fused into a new big cluster.

A natural question is :
How to measure the dissimilarity between two clusters of observations?

A number of different cluster agglomeration methods (i.e, linkage methods) has been developed to answer to this question. The most common types methods are:

Complete linkage and Ward’s method are generally preferred.

3 Data preparation and descriptive statistics

We’ll use the built-in R dataset USArrest which contains statistics, in arrests per 100,000 residents for assault, murder, and rape in each of the 50 US states in 1973. It includes also the percent of the population living in urban areas.

It contains 50 observations on 4 variables:

• [,1] Murder numeric Murder arrests (per 100,000)
• [,2] Assault numeric Assault arrests (per 100,000)
• [,3] UrbanPop numeric Percent urban population
• [,4] Rape numeric Rape arrests (per 100,000)

# Load the data set
data("USArrests")

# Remove any missing value (i.e, NA values for not available)
# That might be present in the data
df <- na.omit(USArrests)

# View the firt 6 rows of the data
head(df, n = 6)

##            Murder Assault UrbanPop Rape
## Alabama      13.2     236       58 21.2
## Alaska       10.0     263       48 44.5
## Arizona       8.1     294       80 31.0
## Arkansas      8.8     190       50 19.5
## California    9.0     276       91 40.6
## Colorado      7.9     204       78 38.7

Before hierarchical clustering, we can compute some descriptive statistics:

desc_stats <- data.frame(
  Min = apply(df, 2, min), # minimum
  Med = apply(df, 2, median), # median
  Mean = apply(df, 2, mean), # mean
  SD = apply(df, 2, sd), # Standard deviation
  Max = apply(df, 2, max) # Maximum
  )
desc_stats <- round(desc_stats, 1)
head(desc_stats)

##           Min   Med  Mean   SD   Max
## Murder    0.8   7.2   7.8  4.4  17.4
## Assault  45.0 159.0 170.8 83.3 337.0
## UrbanPop 32.0  66.0  65.5 14.5  91.0
## Rape      7.3  20.1  21.2  9.4  46.0

Note that the variables have a large different means and variances. This is explained by the fact that the variables are measured in different units; Murder, Rape, and Assault are measured as the number of occurrences per 100 000 people, and UrbanPop is the percentage of the state’s population that lives in an urban area.

They must be standardized (i.e., scaled) to make them comparable. Recall that, standardization consists of transforming the variables such that they have mean zero and standard deviation one. You can read more about standardization in the following article: distance measures and scaling.

As we don’t want the hierarchical clustering result to depend to an arbitrary variable unit, we start by scaling the data using the R function scale() as follow:

df <- scale(df)
head(df)

##                Murder   Assault   UrbanPop         Rape
## Alabama    1.24256408 0.7828393 -0.5209066 -0.003416473
## Alaska     0.50786248 1.1068225 -1.2117642  2.484202941
## Arizona    0.07163341 1.4788032  0.9989801  1.042878388
## Arkansas   0.23234938 0.2308680 -1.0735927 -0.184916602
## California 0.27826823 1.2628144  1.7589234  2.067820292
## Colorado   0.02571456 0.3988593  0.8608085  1.864967207

4 R functions for hierarchical clustering

There are different functions available in R for computing hierarchical clustering. The commonly used functions are:

• hclust() [in stats package] and agnes() [in cluster package] for agglomerative hierarchical clustering (HC)
• diana() [in cluster package] for divisive HC

hclust(d, method = "complete")

# Dissimilarity matrix
d <- dist(df, method = "euclidean")

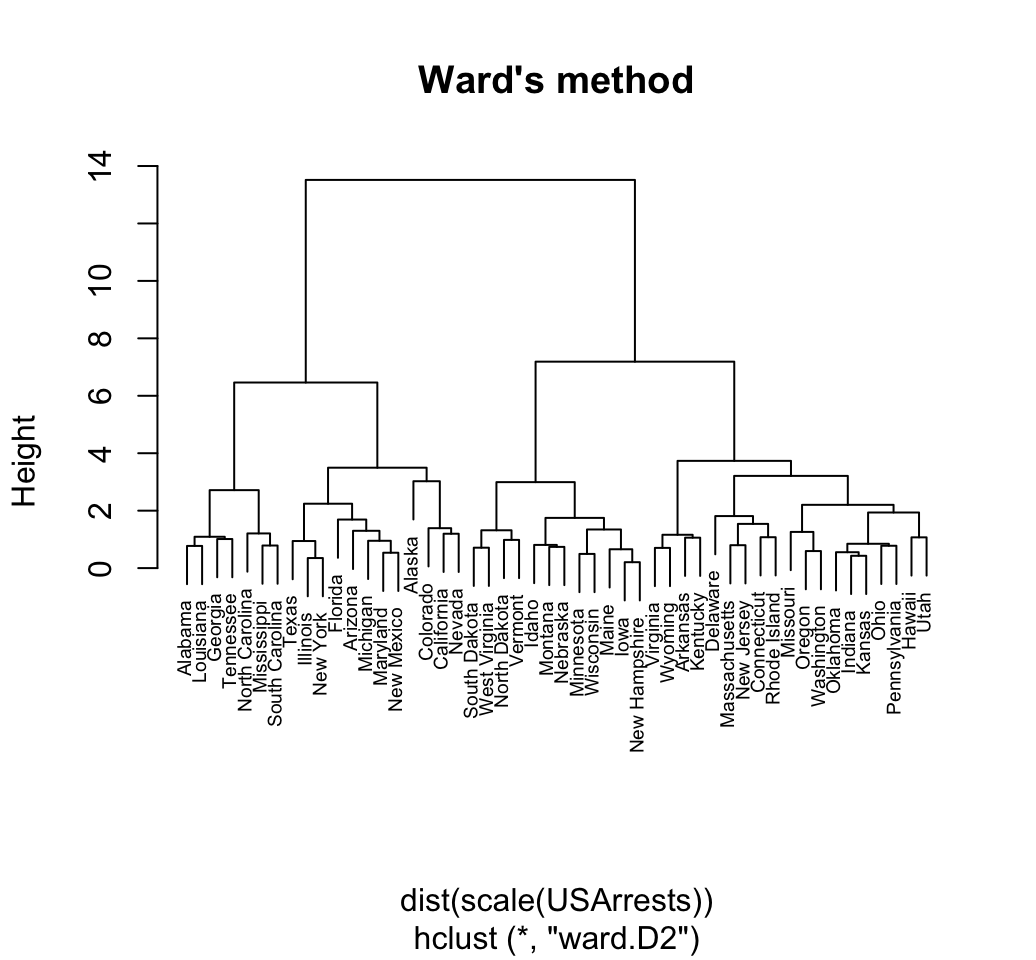

# Hierarchical clustering using Ward's method
res.hc <- hclust(d, method = "ward.D2" )

# Plot the obtained dendrogram
plot(res.hc, cex = 0.6, hang = -1)

# Agglomerative Nesting (Hierarchical Clustering)
agnes(x, metric = "euclidean", stand = FALSE, method = "average")

# DIvisive ANAlysis Clustering
diana(x, metric = "euclidean", stand = FALSE)

library("cluster")
# Compute agnes()
res.agnes <- agnes(df, method = "ward")
# Agglomerative coefficient
res.agnes$ac

## [1] 0.934621

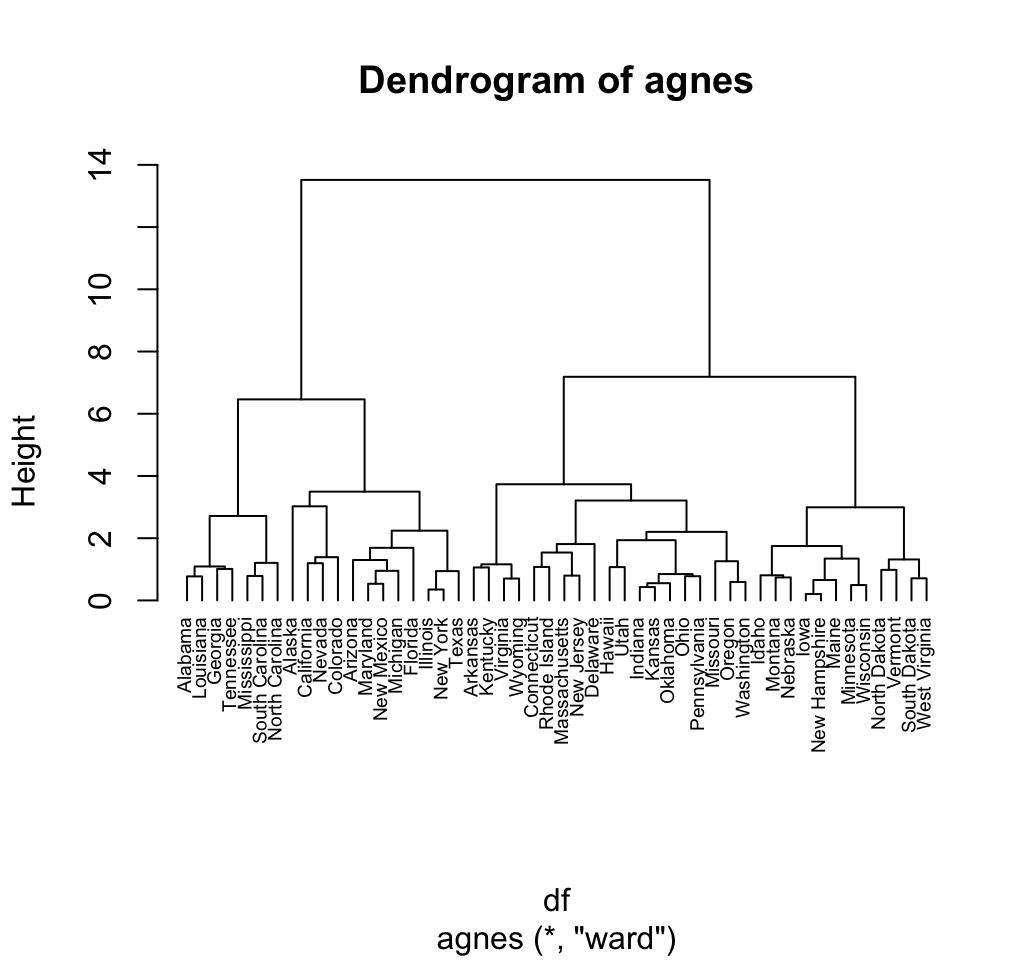

# Plot the tree using pltree()
pltree(res.agnes, cex = 0.6, hang = -1,
       main = "Dendrogram of agnes")

# plot.hclust()
plot(as.hclust(res.agnes), cex = 0.6, hang = -1)
# plot.dendrogram()
plot(as.dendrogram(res.agnes), cex = 0.6,
     horiz = TRUE)

# Compute diana()
res.diana <- diana(df)
# Plot the tree
pltree(res.diana, cex = 0.6, hang = -1,
       main = "Dendrogram of diana")

# Divise coefficient; amount of clustering structure found
res.diana$dc

## [1] 0.8514345

# plot.hclust()
plot(as.hclust(res.diana), cex = 0.6, hang = -1)
# plot.dendrogram()
plot(as.dendrogram(res.diana), cex = 0.6,
     horiz = TRUE)

5 Interpretation of the dendrogram

In the dendrogram displayed above, each leaf corresponds to one observation. As we move up the tree, observations that are similar to each other are combined into branches, which are themselves fused at a higher height.

The height of the fusion, provided on the vertical axis, indicates the (dis)similarity between two observations. The higher the height of the fusion, the less similar the observations are.

Note that, conclusions about the proximity of two observations can be drawn only based on the height where branches containing those two observations first are fused. We cannot use the proximity of two observations along the horizontal axis as a criteria of their similarity.

In order to identify sub-groups (i.e. clusters), we can cut the dendrogram at a certain height as described in the next section.

6 Cut the dendrogram into different groups

The height of the cut to the dendrogram controls the number of clusters obtained. It plays the same role as the k in k-means clustering.

The function cutree() is used and it returns a vector containing the cluster number of each observation:

# Cut tree into 4 groups
grp <- cutree(res.hc, k = 4)
# Number of members in each cluster
table(grp)

## grp
##  1  2  3  4
##  7 12 19 12

# Get the names for the members of cluster 1
rownames(df)[grp == 1]

## [1] "Alabama"        "Georgia"        "Louisiana"      "Mississippi"
## [5] "North Carolina" "South Carolina" "Tennessee"

It’s also possible to draw the dendrogram with a border around the 4 clusters. The argument border is used to specify the border colors for the rectangles:

plot(res.hc, cex = 0.6)
rect.hclust(res.hc, k = 4, border = 2:5)

Using the function fviz_cluster() [in factoextra], we can also visualize the result in a scatter plot. Observations are represented by points in the plot, using principal components. A frame is drawn around each cluster.

library(factoextra)
fviz_cluster(list(data = df, cluster = grp))

The function cutree() can be used also to cut the tree generated with agnes() and diana() as follow:

# Cut agnes() tree into 4 groups
cutree(res.agnes, k = 4)

# Cut diana() tree into 4 groups
cutree(as.hclust(res.diana), k = 4)

7 Hierarchical clustering and correlation based distance

The different functions for hierarchical clustering use Euclidean distance measures as default metric. It’s also possible to use correlation-based distance measures. Firstly, pairwise correlation matrix between items is computed using the function cor() which can calculate either “pearson”, “spearman” or “kendall” correlation method. Next, the correlation matrix is converted as a distance matrix and finally clustering can be computed on the resulting distance matrix.

res.cor <- cor(t(df), method = "pearson")
d.cor <- as.dist(1 - res.cor)
plot(hclust(d.cor, method = "ward.D2"), cex = 0.6)

8 What type of distance measures should we choose?

The choice of dissimilarity measures is very important, as it has a strong influence on the resulting dendrogram.

In many of the examples described above, we used Euclidean distance as the dissimilarity measure. Depending on the type of the data and the researcher questions, other dissimilarity measures might be preferred such as correlation-based distance.

Correlation-based distance considers two observations to be similar if their features are highly correlated, even though the observed values may be far apart in terms of Euclidean distance.

If we want to identify clusters of observations with the same overall profiles regardless of their magnitudes, then we should go with correlation-based distance as a dissimilarity measure. This is particularly the case in gene expression data analysis, where we might want to consider genes similar when they are “up” and “down” together. It is also the case, in marketing if we want to identify group of shoppers with the same preference in term of items, regardless of the volume of items they bought.

If Euclidean distance is chosen, then observations with high values of features will be clustered together. The same holds true for observations with low values of features.

9 Comparing two dendrograms

We’ll use the package dendextend which contains many functions for comparing two dendrograms, including: dend_diff(), tanglegram(), entanglement(), all.equal.dendrogram(), cor.dendlist().

The function tanglegram() and cor.dendlist() are described in this section.

A random subset of the dataset will be used in the following example. The function sample() is used to randomly select 10 observations among the 50 observations contained in the data set

# Subset containing 10 rows
set.seed(123)
ss <- sample(1:50, 10)
df <- df[ss,]

In the R code below, we’ll start by computing pairwise distance matrix using the function dist(). Next, hierarchical clustering (HC) is computed using two different linkage methods (“average” and “ward.D2”). Finally the results of HC are transformed as dendrograms:

library(dendextend)
# Compute distance matrix
res.dist <- dist(df, method = "euclidean")

# Compute 2 hierarchical clusterings
hc1 <- hclust(res.dist, method = "average")
hc2 <- hclust(res.dist, method = "ward.D2")

# Create two dendrograms
dend1 <- as.dendrogram (hc1)
dend2 <- as.dendrogram (hc2)

# Create a list of dendrograms
dend_list <- dendlist(dend1, dend2)

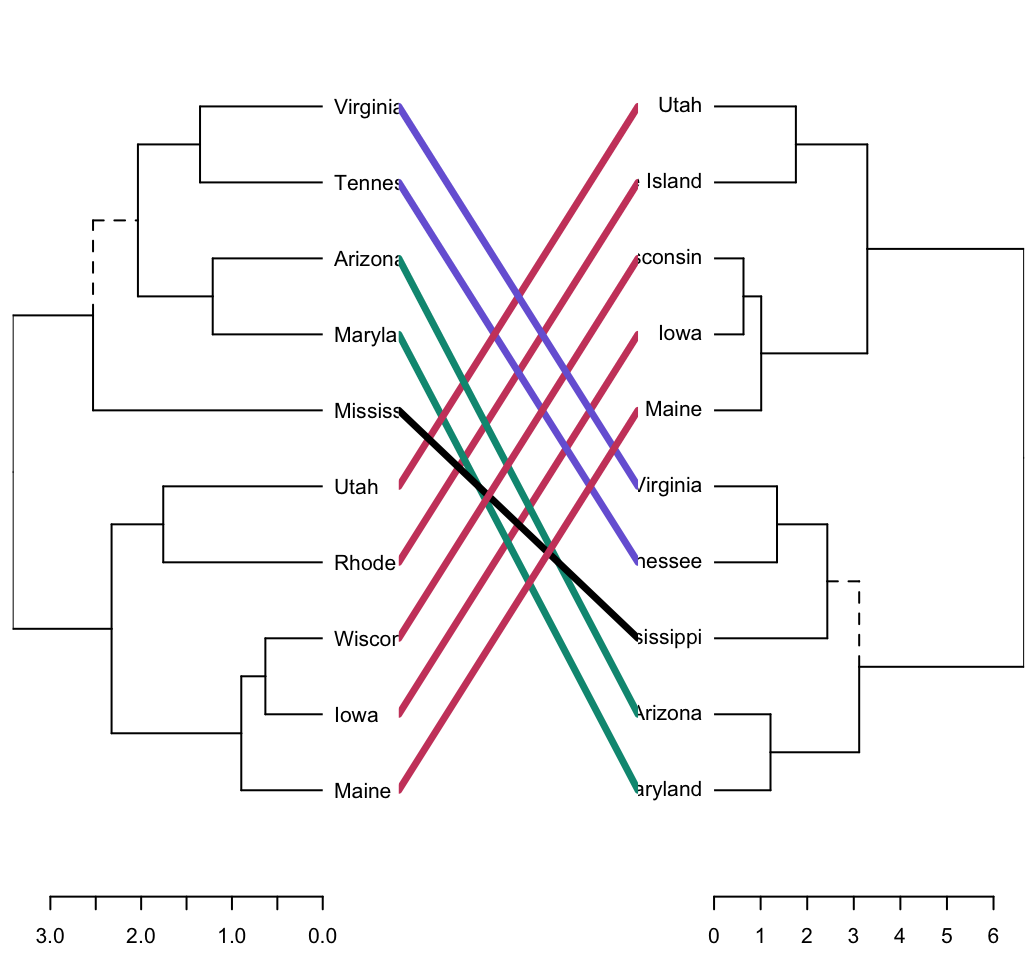

tanglegram(dend1, dend2)

tanglegram(dend1, dend2,
  highlight_distinct_edges = FALSE, # Turn-off dashed lines
  common_subtrees_color_lines = FALSE, # Turn-off line colors
  common_subtrees_color_branches = TRUE, # Color common branches
  main = paste("entanglement =", round(entanglement(dend_list), 2))
  )

# Cophenetic correlation matrix
cor.dendlist(dend_list, method = "cophenetic")

##           [,1]      [,2]
## [1,] 1.0000000 0.9646883
## [2,] 0.9646883 1.0000000

# Baker correlation matrix
cor.dendlist(dend_list, method = "baker")

##           [,1]      [,2]
## [1,] 1.0000000 0.9622885
## [2,] 0.9622885 1.0000000

# Cophenetic correlation coefficient
cor_cophenetic(dend1, dend2)

## [1] 0.9646883

# Baker correlation coefficient
cor_bakers_gamma(dend1, dend2)

## [1] 0.9622885

# Subset data
set.seed(123)
ss <- sample(1:150, 10 )
# Create multiple dendrograms by chaining
dend1 <- df %>% dist %>% hclust("com") %>% as.dendrogram
dend2 <- df %>% dist %>% hclust("single") %>% as.dendrogram
dend3 <- df %>% dist %>% hclust("ave") %>% as.dendrogram
dend4 <- df %>% dist %>% hclust("centroid") %>% as.dendrogram
# Compute correlation matrix
dend_list <- dendlist("Complete" = dend1, "Single" = dend2,"Average" = dend3, "Centroid" = dend4)
cors <- cor.dendlist(dend_list)
# Print correlation matrix
round(cors, 2)

##          Complete Single Average Centroid
## Complete     1.00   0.76    0.99     0.75
## Single       0.76   1.00    0.80     0.84
## Average      0.99   0.80    1.00     0.74
## Centroid     0.75   0.84    0.74     1.00

# Visualize the correlation matrix using corrplot package
library(corrplot)
corrplot(cors, "pie", "lower")

10 Infos

This analysis has been performed using R software (ver. 3.2.1)
